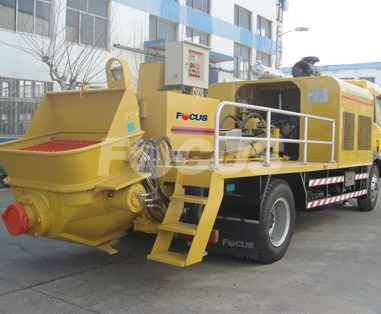

Truck Mounted Stationary Pump
86-371-86003912
- about this model
- technical data
- brochure download
FOCUS truck-mounted concrete pump main features:
Please fill below form if need quotation or support, we will get back to you as soon as possible.
- DONGFENG or JIEFANG chassis with EURO III emission standard are available;
- CARTER diesel engine with high power;
- highly efficient pumping system and reliable hydraulic system;
- SIEMENS latest logic control module with simple circuit.
| Pictrue： | ||
 |
 |
 |
| GERMANY DEUTZ 6-cylinder diesel engine | GERMANY REXROTH’s main oil pump | AMERICA EATON VICKERS’s control valve |
 |
 |
 |
| Cleaning steel pipe and hose | Auto-lubricating system | Main oil cylinder’s sealing parts |
 |
 |
 |
| Control panel | Wired remote-control | Hard alloy eyeglass plate and incising ring |
 |
 |
 |
| High-low-pressure switch valve designed with patent | Bucket | Water tank |
 |
 |
 |
| Radiator | Valve group | Landing leg operating handle |
 |
 |
 |
| Mixing operating handle | Hydraulic oil tank warming phosphorization | Hose buckling device |
 |
 |
 |
| Pollution degree indicator | Vehicle cleaning high-pressure water pump | Baking finish room |
Please fill below form if need quotation or support, we will get back to you as soon as possible.
Click to enlarge the form
Main Technical Parameters for CA5120THB Truck-mounted Concrete Pump
| Item Name | Unit | Parameters | |
| Parameters for the Whole Truck | Product Model | HDT5120THB | |
| Overall Dimension (length×width×height) | mm | 9000×2490×3000 | |
| Full-load Total Weight | kg | 12000 | |
| Max. Traveling Speed | km/h | 93 | |
| Min. Turning Radius | m | 18 | |
| Max. Grade Ability | % | 37 | |
| Approach Angle | 。 | 22 | |
| Departure Angle | 。 | 13 | |
| Main Pumping Technical Parameters | Diesel Engine Model | BF6M1013CEP | |
| Emission Standard | European â…¡ | ||
| Max. Engine Power | kW | 161/2300(kW/(r/min)) | |
| Oil Consumption | g/kw.h | 205 | |
| Main System Pressure | MPa | 32 | |
| Hydraulic Oil Cooling Model |
Wind cooling AW46# |
||
| Theoretical Concrete Output | M3/h | 90 | |
| Theoretical Concrete Pressure (high/low) | MPa | 12 | |
| Pumping Times(high/low) | times/min | 22 | |
| Rated Horizontal Delivery Height | m | 180 | |
| Delivery Pipe Diameter | mm | Φ125 | |
| Feeding Bucket Volume | L | 0.6 | |
| Feeding Height | mm | 1330 | |
| Concrete Landslide Degree | cm | 8~23 | |
| Max. Aggregate Size | mm | 40 | |
| Distributing Valve Mode | S-Valve | ||
| Water Tank Volume | L | 500 | |
| Lubricating Mode | Self-lubricating | ||
| Pumping main technical parameters | Chassis Model | CA1120PK2L2EA80 | |
| Wheel Base | mm | 4700 | |
| Engine Model | BF4M1013-16E3 | ||
| Emission Standard | European â…¢ | ||
| Max. Engine Power | kW | 118 | |
| Max. Engine Torque | N.m | 620/1400r/min | |
| Cylinder Diameter × Stroke | mm | 108*130 | |
| Displacement | L | 4.764 | |
| Oil Consumption within 100 kilometers | L | 0.193 | |
| Oil Tank Capacity | L | 200 |
